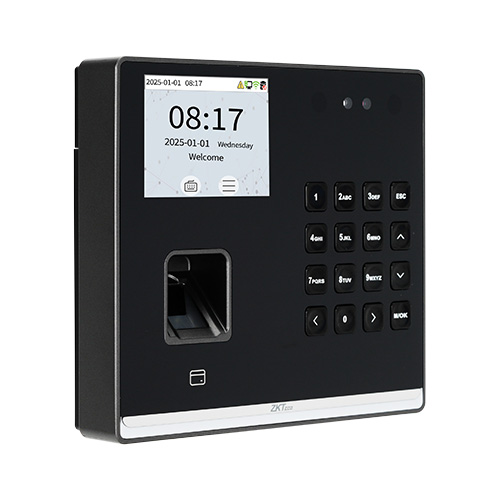

M2F PRO LR
Time Attendance Systems
<p>SenseFP M2 and SenseFace M2F-LR are time and attendance terminals which simplifies attendance solutions and support access control functions. It is aimed at small and medium-sized businesses (SMEs) that want to manage their workforce reliably and cost-effectively.</p><p style="text-align: justify;"></p><p style="text-align: justify;">SenseFP M2 and SenseFace M2F-LR provide multiple authentication options, such as fingerprint verification and card entry. The SenseFace M2F-LR extends its capability with facial authentication with anti-spoofing function.</p><p style="text-align: justify;"></p><p style="text-align: justify;">Also, the SenseFP M2 and SenseFace M2F-LR are equipped with TCP/IP and Wi-Fi interfaces for seamless network integration and secure communication. The terminal can transmit data quickly across wired and wireless environments. The SenseFP M2 and SenseFace M2F-LR have a 2,000mAh backup battery (optional). This provides a minimum of 4 hours of continuous operational power.</p>
Specifications
| Display | 2.8"@ TFT Color LCD Screen (320*240) |
|---|---|
| Camera | SenseFP M2: N/A SenseFace M2F-LR: Binocular Camera @ 1MP |
| Operation System | Linux / windows |
| Hardware | SenseFP M2: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing color: Black and White SenseFace M2F-LR: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Supplement Light: Yes; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing Color: Black and White |
| Authentication method | SenseFP M2: Fingerprint / Card / Password (Physical Keypad) SenseFace M2F-LR: Fingerprint / Face / Card / Password (Physical Keypad) |
| Fingerprint Capacity | SenseFP M2: 3,000 (1:N) (Standard) SenseFace M2F-LR: 1,000 (1:N) (Standard) |
| Face Capacity | SenseFP M2: N/A SenseFace M2F-LR: 500 (1:N) (Standard) |
| Card Capacity | SenseFP M2: 3,000 (1:N) (Standard) SenseFace M2F-LR: 1,000 (1:N) (Standard) |
| User Capacity | SenseFP M2: 3,000 (1:N) (Standard) SenseFace M2F-LR: 1,000 (1:N) (Standard) |
| Transaction Capacity | 150,000 |
| Communication | TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) USB: Type A (USB Drive Only )*1 Electric Lock*1, Door Sensor*1, Exit Button*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Optional Functions | IC Card, Wi-Fi, Backup Battery |
